800 Fabricated Spools, Tees & Wall Fittings

Product Description

Custom fabricated tees for cutting in services, replacing existing piping and for installing bypasses. The ability to meet exact length requirements, epoxy coated for extra corrosion resistance and quick shipment make these spools real problem solvers.
Ideal for installing new fittings and equipment where the laying length of the new equipment is shorter than the equipment being
replaced. These spools can make up the difference and include added threaded outlets if necessary. Custom fabrication allows exact length requirements to be met.

  • Sizes 3” (80mm) and Larger, Available size on size and reducing
  • Standard Flange – ASME/ANSI B16.5 Class 125 Compatible Steel Ring
  • Common Flanges Available – others available upon request
  • ASME/ANSI B16.1
  • ASME/ANSI B16.5
  • ASME/ANSI B16.47, Series A & B
  • Weld Neck, Blind, Slip-on, Reducing Threaded, Socket Weld, Lap Joint,
  • Angle Face, Van Stone
  • Concentric and Eccentric Flanges

JCM Spools are available for grooved coupling applications, contact JCM Engineered and Technical Sales Team.
Fabricated spools are available in carbon steel, stainless steel (304 & 316)

  • 820 Fabricated Spool – Plain End
  • 822 Fabricated Spool – Flange x Plain End
  • 823 Fabricated Spool – Bypass Tee – Flg x Flg x Flg
  • 831 Fabricated Spool – Flange x Flange with Test Outlets
  • 832 Fabricated Spool – Flange x Flange without Test Outlets

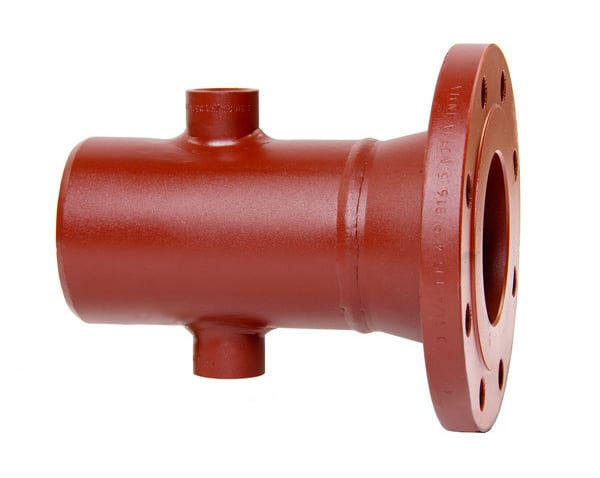

  • 833 Fabricated Spool – Flange x Plain End Spool with Test Outlets
  • 833 Fabricated Spool – Flange x Plain End Spool without Test Outlets
