440 Industrial Line Stop Fittings

Category: .

Product Description

The 440 Industrial Line Stop Sleeve Family offers the sleeve you need for the application. As the NUMBER ONE choice of contractors, JCM continues to meet the challenge of field application requirements with product design, material selection and delivery expectations. JCM 440 Industrial Line Stop Family continues to grow with advanced designs, material combinations and numerous options to fit your application. JCM’s patented Line Stop Sleeves adapt to popular line stop machines and can be rated up to 250 PSI.

JCM Line Stop Sleeves with Full Circumferential Gasket are designed for applications in which the pipe is susceptible to breaking during or after the tapping/line stop procedure. JCM 440 Industrial Line Stops with Full Circumferential Gasket are offered in two fabricated material combinations: All Stainless Steel or Stainless Steel with Carbon Steel Outlet.

The JCM 440 Industrial Line Stop Fitting with Outlet Seal Gasket are fabricated for types of pipe that are not susceptible to breaking and for large diameter pipelines. JCM offers the broadest selection of material combination in the industry and can meet the exacting standards of your application. Fabrication materials include: carbon steel, carbon/stainless and all stainless steel. JCM patented Line Stop Sleeves adapt to popular line stop machines and can be rated up to 250 PSI. Other designs available: weld-on outlets and sleeves, mechanical joint sleeves, specialty configurations. All combinations are available with “threaded plug” design or “push plug” design.

Bolt On Fittings

  • 440 Type 21 – All Stainless Steel with Full Circumferential Gasket – Threaded Plug
  • 440 Type 31 – All Stainless Steel with Full Circumferential Gasket – Push Plug/ Pin
  • 440 Type 24 – Stainless Steel Carbon Steel Outlet Full Circumferential Gasket – Threaded Plug
  • 440 Type 34 – Stainless Steel Carbon Steel Outlet Full Circumferential Gasket – Push Plug/ Pin

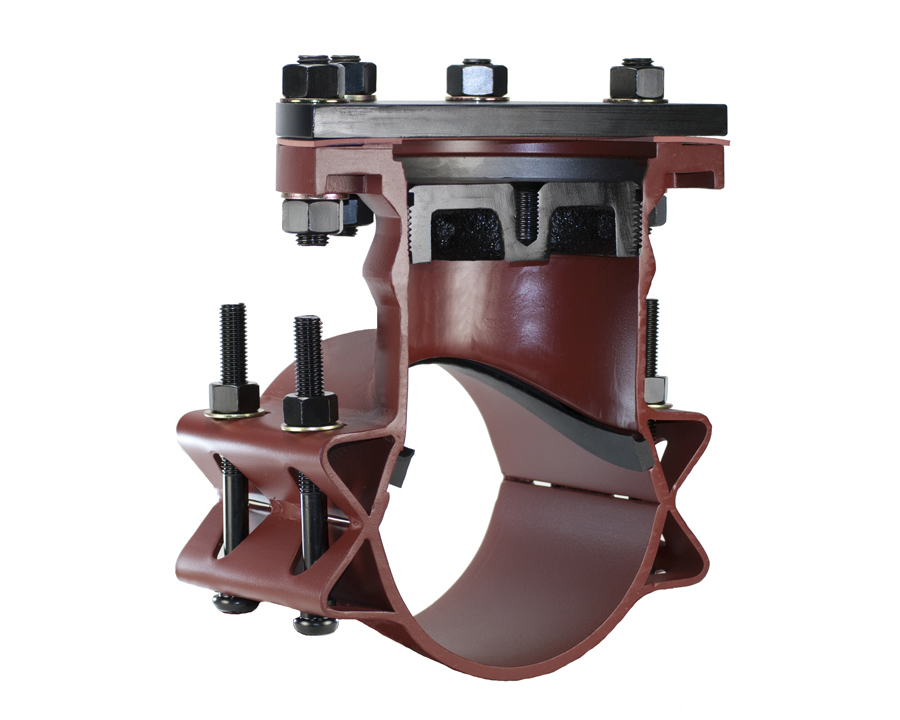

  • 440 Type 22 – Carbon Steel Construction – Outlet Seal Gasket – Threaded Plug
  • 440 Type 32 – Carbon Steel Construction – Oulet Seal Gasket – Push Plug /pin
  • 440 Type 23 – All Stainless Steel Construction – Outlet Seal Gasket – Threaded Plug
  • 440 Type 33 – All Stainless Steel Construction – Outlet Seal Gasket – Push Plug Pin

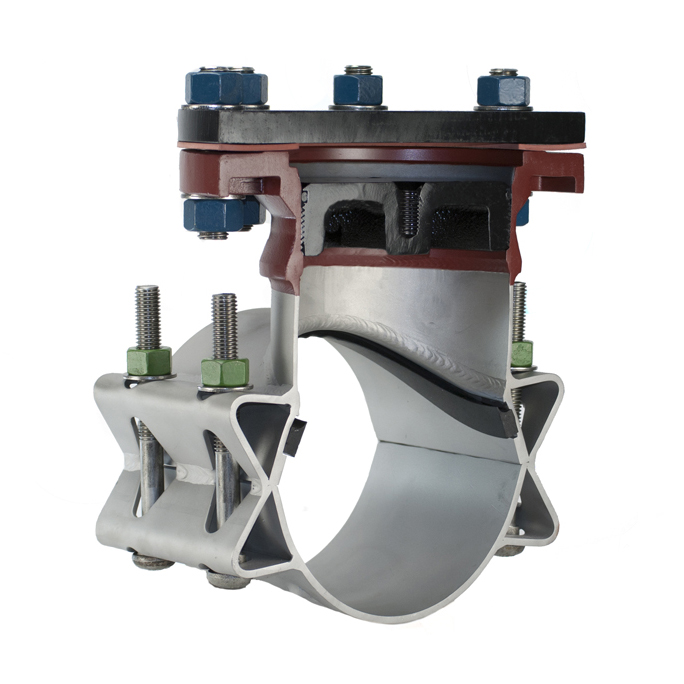

  • 440 Type 25- Stainless Steel Body – Carbon Steel Outlet – Outlet Seal Gasket – Threaded Plug
  • 440 Type 35 – Stainless Steel Body – Carbon Steel Outlet- Outlet Seal Gasket- Push Plug Pin

Weld On Fittings

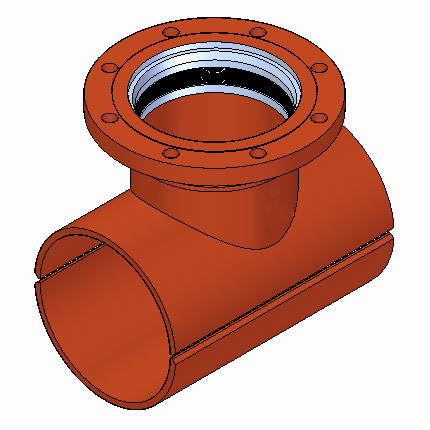

  • 440 Type 26 – Full Body – Threaded Plug
  • 440 Type 36 – Full Body – Push Plug/ Pin
  • 440 Type 27 – Outlet Only – Threaded Plug
  • 440 Type 37 – Outlet Only – Push Plug/ Pin
