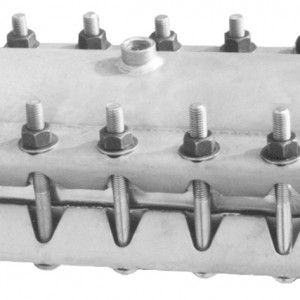

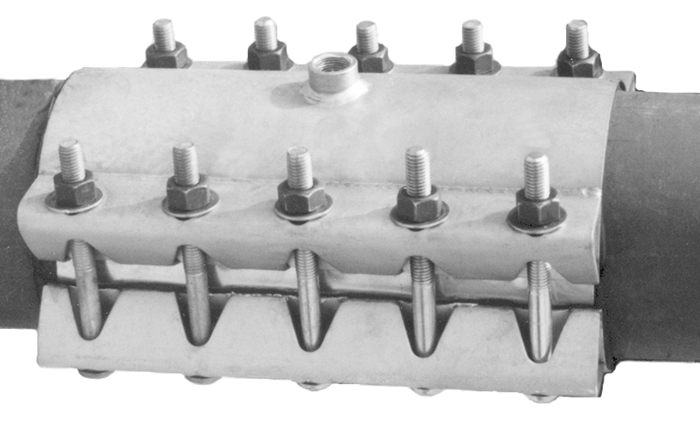

136 Heavy Duty Stainless Steel Repair Clamp

Category: .

Product Description

The JCM 136 Heavy Duty Stainless Steel Repair Clamp incorporates the corrosion resistance of stainless steel, the full circumferential gasketing of a Universal Clamp Coupling and the triangular bolting configuration of the traditional Tapping Sleeve to provide a repair clamp coupling with high working pressure capabilities. All Stainless Steel Construction – provides superior corrosion resistance in harsh or acidic environments. All 304 or 316 Stainless Steel available.

Traditional Design Tapping Sleeve Bolting System – triangular lug design, allows for pass-through, replaceable bolts. This bolting configuration eliminates alignment problems and allows tightening on both sides of the pipe. JCM 136 has a minimum standard material of heavy duty stainless steel – 14 gauge prime material.

This strong, yet flexible stainless shell conforms to uneven or unusual pipe surfaces and provides complete compression of the gasket on the pipe wall. The 136 full circumferential gasket provides a water tight seal on the full circumference of the pipe. The gridded 1/4” thick gasket is of a durometer hardness that allows the rubber to conform to and fill the pits and voids of uneven pipe surfaces.

Suitable for these types of damage:

4-types-of-damage-trans

Applications

Repair Temporary/Permanent Especially Recommended for High Working Pressures

  • Splits
  • Cracks
  • Breaks
  • Holes
  • Corroded Areas
  • Gouges
